P2.976 Outdoor LED Advertising Screen For Building Facade Billboard Displays Front Maintenance Waterproof Iron Cabinet Led Display Screen Led Screen For Stage
商品の詳細:
| 起源の場所: | 中国 |
| ブランド名: | LEDKING |
| 証明: | CE FCC ISO |
| モデル番号: | p3.91 |
お支払配送条件:
| 最小注文数量: | 10 |
|---|---|
| 価格: | $791/PC |
| パッケージの詳細: | 合板ケース |
| 受渡し時間: | 15日間 |
| 支払条件: | T/T |
| 供給の能力: | 10個 15日間 |
|
詳細情報 |
|||
| パネル寸法: | 250mm ((W) * 250mm ((H) | ピクセル密度: | 112910ドット/平方メートル |
|---|---|---|---|
| LED仕様: | SMD1415 | キャビネットのサイズ: | 1000mm×1000mm |
| 材料: | 防水鉄キャビネット | ICの運転: | ICN 2153 |
| ハイライト: | outdoor LED advertising screen waterproof,front maintenance LED display screen,iron cabinet LED stage screen |
||
製品の説明

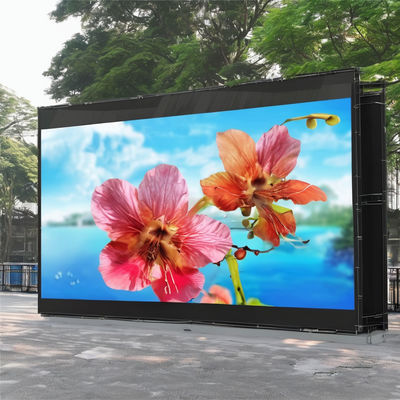

P2.976 Outdoor LED Advertising Screen
Professional outdoor LED display designed for building facade billboards with front maintenance access and waterproof iron cabinet construction. Ideal for stage applications and high-visibility advertising.
Key Features
- Front maintenance access for easy servicing
- IP65 waterproof rating for outdoor durability
- High brightness (4000-4500cd/m²) for clear visibility
- Wide viewing angle (170°/120°)
- Long lifespan of 100,000 hours
- Suitable for building facades and stage applications
Module Specifications
| Parameter | Value |
|---|---|
| Panel Dimension | 250mm(W) * 250mm(H) |
| Pixel Pitch | 2.976mm |
| Pixel Density | 112,910 dot/m² |
| Pixel Configuration | 1R1G1B |
| LED Specification | SMD1415 |
| Pixel Resolution | 84dot * 84dot |
| Max Power Consumption | 22.5W |
| Panel Weight | 0.6KG |
Cabinet Specifications
| Parameter | Value |
|---|---|
| Cabinet Size | 1000mm * 1000mm |
| Cabinet Resolution | 336dot * 336dot |
| Quantity of Panels | 16pcs |
| Hub Connecting | HUB75-E |
| Material | Waterproof Iron Cabinet |
| Maintenance Method | Front Service |
| Best Viewing Angle | 170°/120° |
| Screen Power Supply | AC110V/220V - 5V40A |
| Max Power Capacity | 1100 W/m² |
| Average Power Consumption | 450W/m² |
| Panel Weight | 50KG |
Technical Specifications
| Parameter | Value |
|---|---|
| Driving IC | ICN 2153 |
| Scan Rate | 1/21S |
| Refresh Frequency | 3840 HZ/S |
| Brightness | 4000-4500cd/m² |
| Life Span | 100,000 Hours |
| Display Color | 4096 * 4096 * 4096 |
| Contrast Ratio | 4000:1 |
| Control Distance | <100M |
| Best Viewing Distance | 2-30M |
| Operating Temperature | -10°C ~ 45°C |
| Operating Humidity | 10-90% |
| IP Protective Index | IP65 |
Product Images
