詳細情報 |
|||
| 制御システム: | ノヴァスター | キャビネットの材質: | アルミダイカスト |
|---|---|---|---|
| キャビネットのサイズ: | 500*500mm 500*1000mm | パネル重量: | 7kg |
| 寿命: | 100000時間 | スキャン速度: | 1/32S |
| ハイライト: | P2.6 LED video wall rental,indoor LED display with quick-lock,event LED screen true color |
||
製品の説明

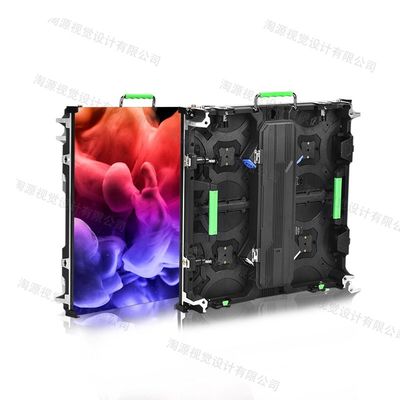

High-Resolution Indoor Rental P2.6 LED Video Wall
Professional LED display featuring quick-lock installation and true color technology, designed for exceptional event visual experiences.
Technical Specifications
Module Specifications
| Parameter | Specification |
|---|---|
| Module Size | 250mm(W) × 250mm(H) |
| Pixel Pitch | 2.6mm |
| Pixel Density | 147,928 dots/m² |
| Pixel Configuration | 1R1G1B |
| LED Specification | SMD1515 |
| Pixel Resolution | 96 dots × 96 dots |
| Max Power Consumption | 35W |
| Panel Weight | 0.55KG |
Cabinet Specifications
| Parameter | Specification |
|---|---|
| Cabinet Size | 500×500mm, 500×1000mm |
| Cabinet Resolution | 192×192 dots, 192×384 dots |
| Quantity of Panels | 4pcs, 8pcs |
| Hub Connection | HUB75-E |
| Material | Die-casting aluminum cabinet |
| Maintenance Method | Front/Back service |
| Best Viewing Angle | 170°/120° |
| Power Supply | AC110V/220V-5V40A |
| Max Power Consumption | 800W/㎡ |
| Average Power Consumption | 400W/m² |
Technical Signal Index
| Parameter | Specification |
|---|---|
| Driving IC | ICN1065 |
| Scan Rate | 1/32S |
| Refresh Frequency | 3840-7680Hz/S |
| Display Color | 4096×4096×4096 (16bit) |
| Contrast Ratio | 4000:1 |
| Brightness | 800-1000 cd/㎡ |
| Life Span | 100,000 Hours |
| Best Viewing Distance | 2-30M |
| Operating Temperature | -10℃ to 45℃ |
| Operating Humidity | 10-90% |
| IP Protective Index | IP43 |
Core Features and Advantages
- Flexible and Fast: Modular design enables rapid assembly, disassembly, and transportation, adapting to diverse venues and temporary event requirements.
- Exceptional Performance: High refresh rate ensures flicker-free filming with vivid, detailed colors and powerful visual impact.
- Creative Versatility: Freely configurable into arcs, floor tiles, and other innovative shapes to perfectly complement any themed setting.
- Intelligent Operation: Utilizes mainstream control systems like Nova for simplified setup, operation, and content management.
- Stable and Reliable: Engineered for frequent rentals with robust durability and quick maintenance support to ensure seamless event execution.
Application Scenarios

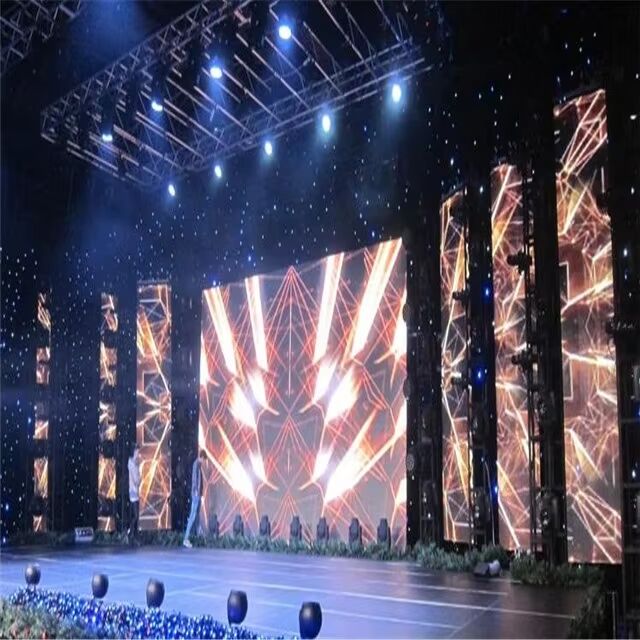

- Stage Performances: Dynamic main visual backgrounds for concerts, launch events, and other activities, enhancing on-site immersion.
- Church Services: Clearly display lyrics, scriptures, and sermon materials, enriching the religious ceremony experience.
- Wedding Celebrations: Display wedding photos and videos as stage backdrops to create an immersive romantic atmosphere.
- Advertising Displays: Used in high-end mall pop-up stores and brand experience shops to broadcast high-definition advertisements and attract foot traffic.
- Conferences & Exhibitions: Serve as large-scale conference backdrop walls and exhibition booth focal points, clearly presenting presentation content and product demonstrations.
- TV Production: Utilized for studio virtual backgrounds and entertainment venues, enabling flexible scene transitions to create audiovisual effects.
Certifications
The product has obtained CE, FCC, and ISO certifications.
Packaging Solutions
To ensure rental transport safety and enhance brand visibility, we provide standard impact-resistant flight cases with complimentary custom branding services. This safeguards your screens and transforms shipping into a mobile advertisement for your brand.
Case Study
