詳細情報 |
|||
| 制御システム: | ノヴァスター | キャビネットの材質: | アルミダイカスト |
|---|---|---|---|
| キャビネットのサイズ: | 500*500mm,500*1000mm | パネル重量: | 7kg |
| 寿命: | 100000時間 | 電源: | AC110V/220V-5V40A |
| ハイライト: | Outdoor P4.81 LED screen rental,Wide viewing angle LED display,Portable stage LED screen |
||
製品の説明

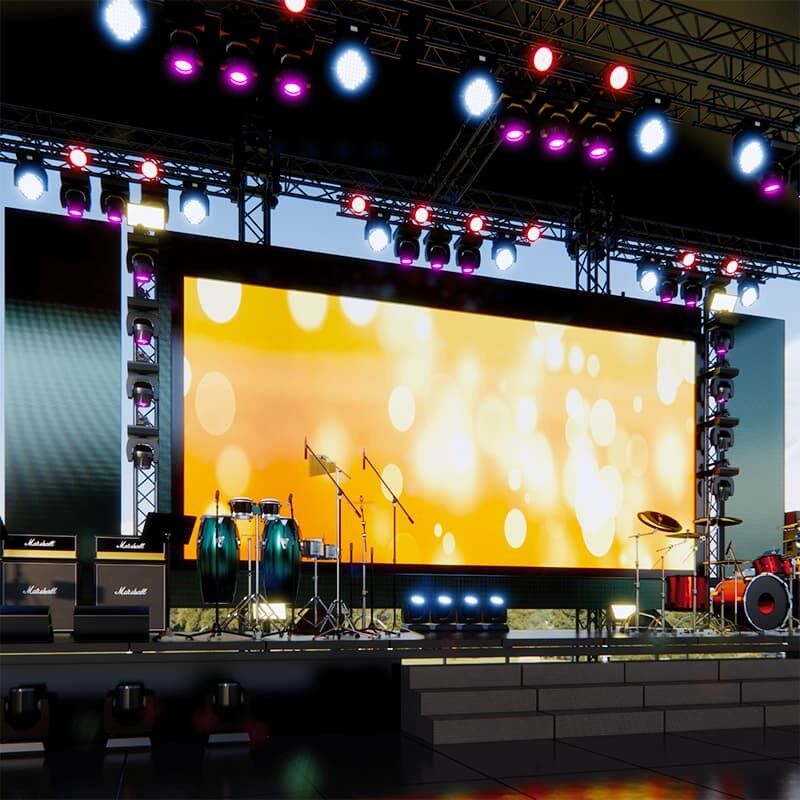

Outdoor Rental P4.81 LED Screen
High-brightness rental LED display with wide viewing angles and rapid setup, designed for stage backgrounds and outdoor events. Features easy transport with protective flight cases.
Technical Specifications
| Module Specifications | |
|---|---|
| Module Size | 250mm(W) * 250mm(H) |
| Pixel Pitch | 4.81mm |
| Pixel Density | 43264 dots/m² |
| Pixel Configuration | 1R1G1B |
| LED Specification | SMD1415 SMD1921 |
| Pixel Resolution | 52 * 52 dots |
| Max Power Consumption | 40W |
| Panel Weight | 0.6KG |
| Cabinet Specifications | |
|---|---|
| Cabinet Size | 500 * 500mm, 500 * 1000mm |
| Cabinet Resolution | 104 * 104 dots |
| Quantity of Panel | 4pcs, 8pcs |
| Hub Connecting | HUB75-E |
| Material | Die-casting aluminum cabinet |
| Maintenance Method | Front/Back service |
| Best Viewing Angle | 170°/120° |
| Power Supply | AC110V/220V-5V40A |
| Max Power Consumption | 1200W/㎡ |
| Average Power Consumption | 600W/m² |
| Technical Signal Index | |
|---|---|
| Driving IC | ICN2153 |
| Scan Rate | 1/24S, 1/21S, 1/16S, 1/13S |
| Refresh Frequency | 3840-7680 Hz/s |
| Display Color | 4096 * 4096 * 4096 (16bit) |
| Contrast Ratio | 4000:1 |
| Brightness | 4500-5000 cd/㎡ |
| Life Span | 100,000 Hours |
| Best Viewing Distance | 4-30M |
| Operating Temperature | -20℃ to 60℃ |
| Operating Humidity | 10-90% |
| IP Protective Index | IP65 |
Core Features and Advantages
- High Brightness & Anti-Glare Performance: Utilizes high-brightness LED modules that maintain clear, vivid images even under direct sunlight, ensuring exceptional visual impact in daytime outdoor settings.
- Quick Assembly & Modular Design: Features lightweight die-cast aluminum enclosures with front/rear maintenance access. Enables tool-free rapid assembly and disassembly, significantly boosting installation efficiency for rental applications.
- Robust Durability & All-Weather Adaptability: IP65 protection rating provides dustproof and waterproof performance, withstanding outdoor challenges including wind, rain, high temperatures, and humidity.
- Simple Operation & Effortless Control: Compatible with industry-standard controllers like Nova, featuring intuitive software for real-time content switching, color calibration, and fault monitoring.
- Energy Efficiency & Low Operating Costs: Employs energy-saving drive technology and intelligent brightness adjustment to reduce power consumption. Rental model eliminates high purchase and maintenance costs for customers.
Application Scenarios
- Large-scale Performances: Main and side screens for music festivals and concerts, displaying artist close-ups, visual effects, and lyrics for immersive experiences.
- Commercial Launch Events: Core information display for product launches and brand events, showcasing details, speeches, and data charts in high definition.
- Celebrations and Ceremonies: Dynamic backdrops for weddings, anniversaries, and award ceremonies, enhancing ceremony atmosphere.
- Cultural Exhibitions: Digital displays for auto shows, art exhibitions, and museums, bringing static exhibits to life.
- Public Festival Plazas: Large-scale outdoor celebrations including cultural festivals, sports events, and New Year's countdowns for live broadcasting and festive atmosphere creation.
- High-end Business Meetings: Visual backdrops for forums, summits, and banquets, presenting speaker and topic information professionally.
- Temporary Information Hub: Emergency command centers, policy dissemination points, and event entrance guidance for efficient information transmission.
Certifications
This product has obtained CE, FCC, and ISO certifications.

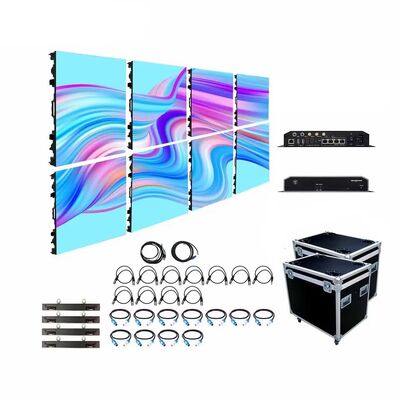

Packaging & Transport
To ensure rental transport safety and enhance brand visibility, we provide standard impact-resistant flight cases with complimentary custom branding services. This safeguards your screens while transforming shipping into mobile brand advertising.
Case Examples
