詳細情報 |
|||
| 制御システム: | ノヴァスター | キャビネットの材質: | アルミダイカスト |
|---|---|---|---|
| キャビネットのサイズ: | 640*480mm | モジュールサイズ: | 320*160mm |
| スキャン速度: | 1/64S | 寿命: | 100000時間 |
| ハイライト: | P1.25 indoor LED panel,ultra-fine pixel pitch LED display,seamless indoor fixed LED screen |
||
製品の説明

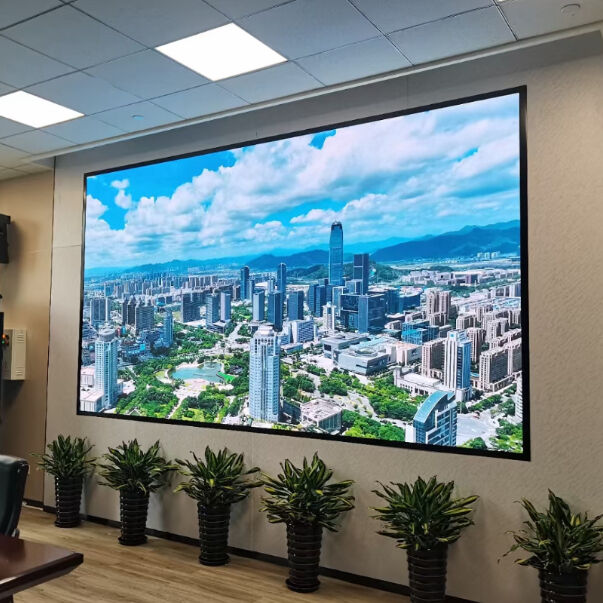

High-Definition P1.25 Indoor LED Panel
Professional-grade indoor LED display with 1.25mm ultra-fine pixel pitch and seamless screen connection technology for exceptional visual performance.
Technical Specifications
Module Specifications
| Module Size | 320mm(W) × 160mm(H) |
| Pixel Pitch | 1.25 mm |
| Pixel Density | 640,000 dot/㎡ |
| Pixel Configuration | 1R1G1B |
| LED Specification | SMD1010 |
| Pixel Resolution | 256 dot × 128 dot |
| Max Power Consumption | 33W |
| Panel Weight | 0.4KG |
Cabinet Specifications
| Cabinet Size | 640mm × 480mm |
| Cabinet Resolution | 512 dot × 384 dot |
| Quantity of Panel | 6pcs |
| Hub Connecting | HUB75-E |
| Material | Die-casting aluminum cabinet |
| Maintenance Method | Front/Back service |
| Best Viewing Angle | 170/120° |
| Power Supply | AC110V/220V-5V40A |
| Max Power Consumption | 976W/㎡ |
| Average Power Consumption | 488W/㎡ |
Technical Signal Index
| Driving IC | ICN1065 |
| Scan Rate | 1/64S |
| Refresh Frequency | 3840HZ/S |
| Display Color | 4096 × 4096 × 4096 (16bit) |
| Contrast Ratio | 4000:1 |
| Brightness | 600-800 cd/㎡ |
| Life Span | 100,000 Hours |
| Best Viewing Distance | 1-30M |
| Operating Temperature | -10℃ ~ 60℃ |
| Operating Humidity | 10-70% |
| IP Protective Index | IP43 |
Core Features and Advantages
- Exceptional Visual Clarity: 640,000 dots per square meter pixel density eliminates screen graininess, ensuring sharp images and text even at close viewing distances.
- Superior Color Performance: High-quality LED chips deliver wide color gamut and true-to-life reproduction with uniform color and brightness across the entire screen.
- Seamless Splicing Technology: Modular design creates virtually invisible seams for perfect visual continuity in large-scale displays.
- Enhanced Durability: GOB (Glue on Board) protection coats LED chips with transparent optical adhesive, preventing damage from impacts and dust.
- High Refresh Rate Performance: Eliminates flickering and motion blur, ensuring smooth dynamic visuals for fast-moving content.
- Flexible Installation: Slim cabinet supports front or rear maintenance with compatibility for multiple control management systems.
Application Scenarios
- Command & Control Centers: Seamless large screens with 24/7 stable operation and ultra-high resolution for multiple signal display.
- Broadcasting & Studios: True-to-life color reproduction with flicker-free filming capabilities and anti-glare surface.
- Corporate Boardrooms: Crystal-clear display of data charts and documents with dust-resistant, easy-to-clean surfaces.
- Brand Showrooms & Digital Art: Immersive visual experiences with support for creative installations and impact-resistant surfaces.
- Luxury Retail & Hospitality: Perfect product detail showcase with robust surfaces suitable for high-traffic public spaces.
Certification
CE
FCC
ISO
Packaging

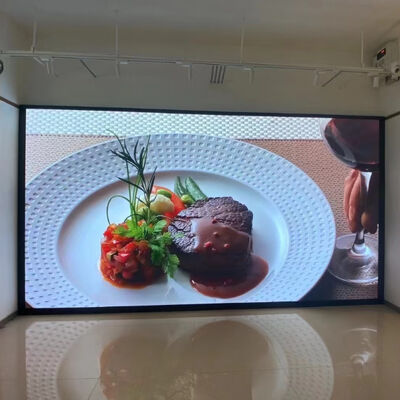

Case Example
