詳細情報 |
|||
| 制御システム: | ノヴァスター | キャビネットの材質: | アルミダイカスト |
|---|---|---|---|
| キャビネットのサイズ: | 500*500mm 500*1000mm | パネル重量: | 7kg |
| 寿命: | 100000時間 | スキャン速度: | 1/25秒 |
| ハイライト: | P2.5 LED display screen,indoor LED video wall,seamless splicing LED screen |
||
製品の説明

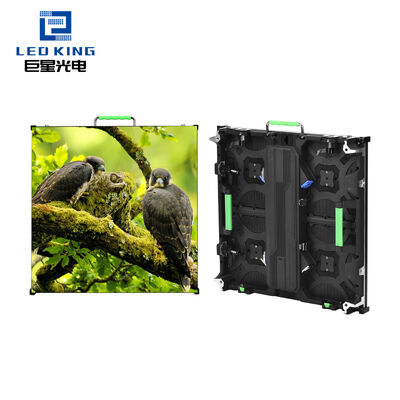

LEDKING Rental Stage Background P2.5 LED Display Screen
High quality indoor P2.5 LED video wall with seamless splicing capabilities, designed for professional rental applications.
Technical Specifications
| Module Specifications | |
|---|---|
| Module Size | 250mm(W) * 250mm(H) |
| Pixel Pitch | 2.5mm |
| Pixel Density | 160,000 dots/m² |
| Pixel Configuration | 1R1G1B |
| LED Specification | SMD2121 |
| Pixel Resolution | 100 * 100 dots |
| Max Power Consumption | 35W |
| Panel Weight | 0.55kg |
| Cabinet Specifications | |
|---|---|
| Cabinet Size | 500 * 500mm, 500 * 1000mm |
| Cabinet Resolution | 200 * 200 dots, 200 * 400 dots |
| Quantity of Panels | 4pcs, 8pcs |
| Hub Connection | HUB75-E |
| Material | Die-casting aluminum cabinet |
| Maintenance Method | Front/Back service |
| Best Viewing Angle | 170°/120° |
| Power Supply | AC110V/220V-5V40A |
| Max Power Consumption | 800W/m² |
| Average Power Consumption | 400W/m² |
| Technical Signal Index | |
|---|---|
| Driving IC | ICN1065 |
| Scan Rate | 1/25S |
| Refresh Frequency | 3840-7680Hz/s |
| Display Color | 4096 * 4096 * 4096 (16bit) |
| Contrast Ratio | 4000:1 |
| Brightness | 800-1000 cd/m² |
| Life Span | 100,000 Hours |
| Best Viewing Distance | 2-30m |
| Operating Temperature | -10℃ to 45℃ |
| Operating Humidity | 10-90% |
| IP Protective Index | IP43 |
Core Features and Advantages
- High-Definition Visuals: 2.5mm pixel pitch with 160,000 dots/m² density delivers crisp, detailed images and text without graininess
- Lightweight & Easy Installation: Modular design enables single-person transport with tool-free self-locking or magnetic connectors
- High Refresh Rate & Wide Viewing Angle: 3840Hz+ refresh rate eliminates flickering for professional filming with 170°/120° viewing angles
- Exceptional Performance: HDR support for true-to-life colors, premium LED chips, and superior heat dissipation
- Flexible Configurations: Supports curved, cubic, and custom shapes for creative stage backdrops and immersive installations

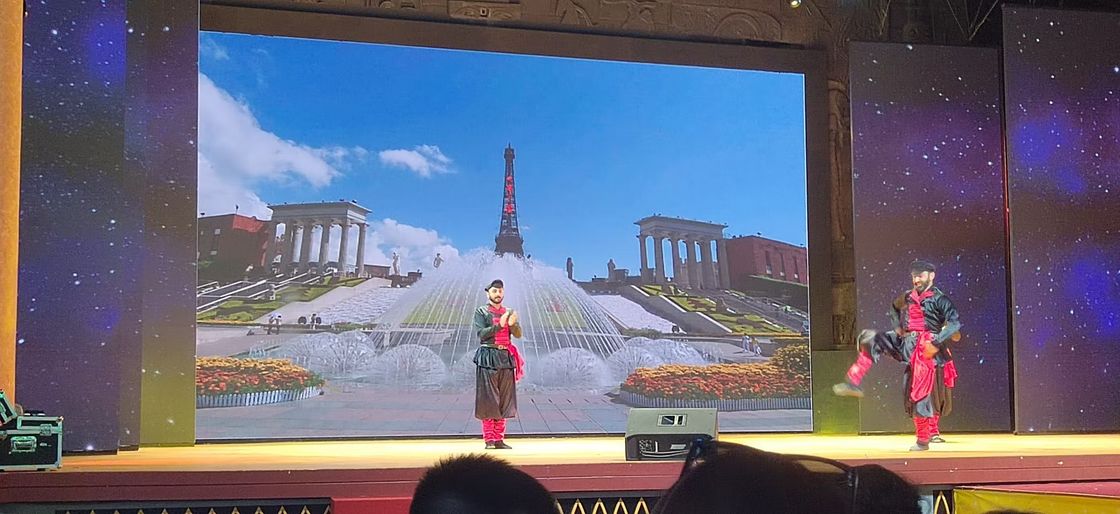

Application Scenarios
- Corporate Events: Annual galas, awards ceremonies with rapid setup for hotel venues
- Product Launches: Showcase smartphones, automobiles, and tech products with immersive displays
- TV Productions: Studio recordings and variety shows requiring broadcast-quality visuals
- Weddings & Fashion Shows: Creative backdrops, floor displays, and ceremony decorations
- Conferences & Forums: Data visualization screens and presentation backdrops
- Cultural Festivals: Large-scale celebrations with versatile indoor/outdoor capabilities
Certifications
CE Certified FCC Certified ISO Certified
Packaging & Transport
Standard impact-resistant flight cases with complimentary custom branding services for safe transport and brand visibility.
