Outdoor Rental P2.6 P2.9 P3.91 P4.81 LED Screen Panel Die-casting Aluminum 500*500mm 500*1000mm LED Cabinet for Church Event
商品の詳細:
| 起源の場所: | 広東省、中国 |
| ブランド名: | LED King |
| 証明: | CE FCC ISO |
| モデル番号: | 屋外 P2.6 P2.9 P3.91 P4.81 |
お支払配送条件:
| 最小注文数量: | 1 |
|---|---|
| 価格: | $133-$202 |
| パッケージの詳細: | フライトケース |
| 受渡し時間: | 15日間 |
| 支払条件: | T/T |
| 供給の能力: | あなたのニーズに応じて |
|
詳細情報 |
|||
| 制御システム: | ノヴァスター | キャビネットの材質: | アルミダイカスト |
|---|---|---|---|
| キャビネットのサイズ: | 500*500mm 500*1000mm | リフレッシュ頻度: | 3840-7680HZ/S |
| 寿命: | 100000時間 | IC: | シポネ ICN2153 |
| ハイライト: | P2.6 LED screen rental panel,die-cast aluminum LED cabinet,church event LED display |
||
製品の説明
Technical Specifications
Module Specifications
| Parameter | Value |
|---|---|
| Module Size | 250mm(W) * 250mm(H) |
| Pixel Pitch | 2.6mm / 2.9mm / 3.91mm / 4.81mm |
| Pixel Density | 147,928 dot/㎡ / 118,906 dot/㎡ / 65,536 dot/㎡ / 43,222 dot/㎡ |
| Pixel Configuration | 1R1G1B |
| LED Specification | SND1415 / SMD1921 |
| Pixel Resolution | 96*96 / 86*86 / 64*64 / 52*52 |
| Max Power Consumption | 40W |
| Panel Weight | 0.6KG |

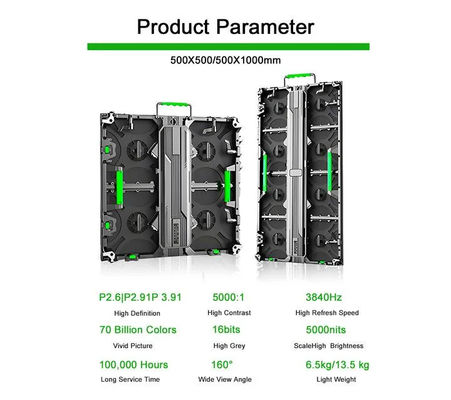

Cabinet Specifications
| Parameter | Value |
|---|---|
| Cabinet Size | 500*500mm / 500*1000mm |
| Cabinet Resolution | 192*192 / 172*172 / 128*128 / 104*104 |
| Quantity of Panel | 4pcs / 8pcs |
| Hub Connecting | HUB75-E |
| Material | Die-casting aluminum cabinet |
| Maintenance Method | Front/Back service |
| Best Viewing Angle | 170°/120° |
| Power Supply | AC110V/220V-5V60A |
| Max Power Consumption | 1200W/㎡ |
| Average Power Consumption | 600W/㎡ |
Technical Signal Index
| Parameter | Value |
|---|---|
| Driving IC | ICN2153 |
| Scan Rate | 1/24S / 1/21S / 1/16S / 1/13S |
| Refresh Frequency | 3840-7680HZ/S |
| Display Color | 4096*4096*4096 (16bit) |
| Contrast Ratio | 4000:1 |
| Brightness | 4000-5000 cd/㎡ |
| Life Span | 100,000 Hours |
| Best Viewing Distance | 2-30M |
| Operating Temperature | -20℃ to 60℃ |
| Operating Humidity | 10-90% |
| IP Protective Index | IP65 |
Core Features and Advantages
- Flexible Adaptability, Rapid Configuration: Modular enclosures can be freely combined to effortlessly build screens of various aspect ratios, catering to diverse rental scenarios.
- Efficient Transport, Easy Assembly: Logistics-optimized module dimensions enable tight stacking, significantly boosting transport and storage efficiency. Supports rapid assembly/disassembly and front-access maintenance.
- Exceptional Picture Quality, Seamless Visuals: High brightness and refresh rates ensure crisp, fluid images even under intense outdoor sunlight. Precision engineering achieves millimeter-level splicing.
- True-to-Life Vibrant Colors: Equipped with wide color gamut display technology, it delivers accurate color reproduction and natural transitions with uniform color consistency.
- Lightweight, Sturdy, Stable, and Durable: Die-cast aluminum construction guarantees robust structure while reducing weight and installation load. High outdoor protection ratings ensure extended service life.
Application Scenarios
Large-Scale Commercial Events and Performances
Concerts, main stage backdrops and side screens for music festivals, brand launches, major award ceremonies.
Rapid deployment of massive high-definition main visuals; flexible configuration into curved or custom-shaped stages; seamless, high-brightness displays create immersive audiovisual experiences.
Exhibition Displays and Brand Advertising
Premium auto shows, industry expos, mall atrium pop-up stores, outdoor temporary large-scale advertising screens.
Customizable screen shapes to match booth configurations, drawing foot traffic. High color accuracy perfectly showcases product details and brand identity.
Stage Productions & Cultural Tourism
Backdrops for theatrical productions, immersive live performances, theme park night tours, large-scale visual displays for religious festivals in churches/temples.
Simulates dynamic scenes to replace traditional backdrops, enabling rapid scene transitions. Seamless splicing ensures visual continuity.
Luxury Weddings and Private Celebrations
Main backdrops for luxury hotel wedding banquet halls, outdoor wedding ceremony areas, birthday and anniversary parties.
Flexibly configurable into romantic shapes like hearts and arches. Displays live video feeds and photo streams.
Broadcast Production & Virtual Filming
Large-scale TV program recording backdrops, virtual production for films/TV series, background walls for corporate online live-streamed launches.
Provides high-definition, flicker-free pure backgrounds ideal for camera filming. Color-accurate surfaces serve as virtual scene carriers.
Temporary Command & Information Display
Command centers for major sporting events, crowd flow guidance screens at exhibitions, emergency command and dispatch screens.
Rapid deployment for temporary command monitoring displays or public information screens. High stability ensures clear, real-time presentation of critical data.
Certifications
The product has obtained CE, FCC, and ISO certifications.
Packaging
Case Examples
この製品の詳細を知りたい
