Outdoor P5 P6 Curved Display Shopping Center Advertising High Brightness LED Screen Waterproof LED Billboard Giant LED Screen Outdoor
商品の詳細:
| 起源の場所: | 広東省、中国 |
| ブランド名: | LED King |
| 証明: | CE FCC ISO |
| モデル番号: | 屋外 P5 P6 |
お支払配送条件:
| 最小注文数量: | 1 |
|---|---|
| 価格: | $348/pc |
| パッケージの詳細: | 木製ケース |
| 受渡し時間: | 15日間 |
| 支払条件: | T/T |
| 供給の能力: | あなたのニーズに応じて |
|
詳細情報 |
|||
| 制御システム: | ノヴァスター | キャビネットのサイズ: | 960*960mm |
|---|---|---|---|
| 材料: | 防水アイロン | キャビネットの重量: | 40kg |
| 寿命: | 100000時間 | 電源: | AC110V/220V-5V60A |
| ハイライト: | Outdoor P5 P6 LED screen,Waterproof LED billboard display,High brightness curved LED screen |
||
製品の説明

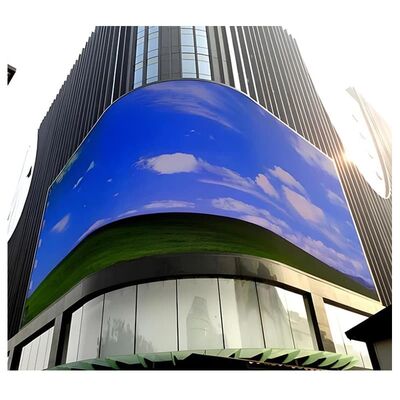

Outdoor P5 P6 Curved Display Shopping Center Advertising High Brightness LED Screen
Technical Specifications
| Module Specifications | |
|---|---|
| Module Size | 320mm(W) * 160mm(H) |
| Pixel Pitch | 5mm / 6mm |
| Pixel Density | 40,000 dots/㎡ (5mm) / 22,477 dots/㎡ (6mm) |
| Pixel Configuration | 1R1G1B |
| LED Specification | SMD1921 SMD3535 |
| Pixel Resolution | 64 dots * 32 dots / 48 dots * 24 dots |
| Max Power Consumption | 45W |
| Panel Weight | 0.5KG |
| Cabinet Specifications | |
|---|---|
| Cabinet Size | 960 * 960mm |
| Cabinet Resolution | 192 dots * 192 dots / 144 dots * 144 dots |
| Quantity of Panels | 18 pcs |
| Hub Connecting | HUB75-E |
| Material | Waterproof Iron Cabinet |
| Maintenance Method | Front/Back Service |
| Best Viewing Angle | 170°/120° |
| Power Supply | AC110V/220V-5V60A |
| Max Power Consumption | 1300W/㎡ |
| Average Power Consumption | 650W/㎡ |
| Technical Signal Index | |
|---|---|
| Driving IC | ICN2153 |
| Scan Rate | 1/8S |
| Refresh Frequency | 3840-7680HZ/S |
| Display Color | 4096 * 4096 * 4096 (16bit) |
| Contrast Ratio | 4000:1 |
| Brightness | 4500-5500 cd/㎡ |
| Life Span | 100,000 Hours |
| Best Viewing Distance | 5-40M |
| Operating Temperature | -20℃ to 60℃ |
| Operating Humidity | 10-90% |
| IP Protective Index | IP65 |
Core Features and Advantages
- Ultra-high definition display with exquisite, lifelike image quality that remains clear and sharp even at close range
- Ultra-high brightness ensures excellent visibility in direct sunlight and strong light environments
- Rugged IP65 protection withstands harsh weather conditions including sun exposure, rain, and sandstorms
- Energy-efficient operation with low failure rate and extended lifespan reduces maintenance costs
- Vibrant colors and smooth dynamic images without ghosting for strong visual impact
Application Scenarios
- Commercial real estate and brand image walls for showcasing logos and high-end advertising

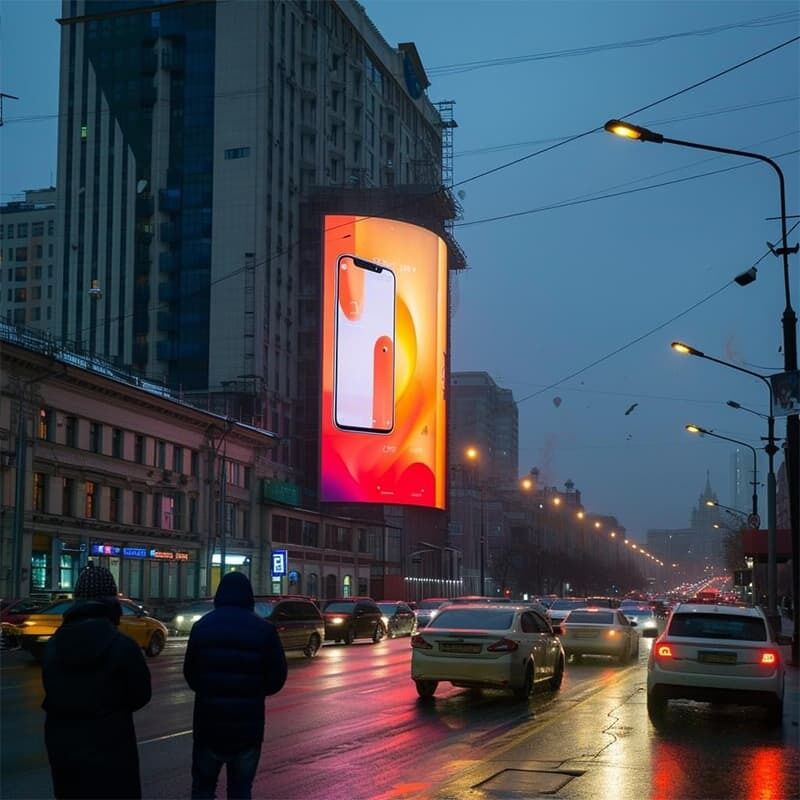

- Digital billboards in bustling commercial districts for day and night visibility
- High-end cultural and sports events and stages for impactful visual effects
- Hotel and convention center information displays for schedules and promotional content
- Transportation hub information service screens for flight info and announcements
- Financial institutions and corporate signage for displaying financial indices and promotional videos
Certifications
This product has obtained CE, FCC, and ISO certifications.
Packaging
Example Case
