詳細情報 |
|||
| 制御システム: | ノヴァスター | 寿命: | 100000時間 |
|---|---|---|---|
| IC: | シポネ ICN2153 | キャビネット材料: | 防水鉄 |
| パネル重量: | 40kg | 電源: | AC110V/220V-5V60A |
| ハイライト: | IP65 waterproof LED display,high-brightness P6 LED screen,outdoor 3D cured LED screen |
||
製品の説明
IP65 Waterproof High-Brightness P6 P8 P10 LED Screen
Professional outdoor LED display solution for shopping malls, advertising, and commercial applications featuring 3D cured technology.
Technical Specifications
| Module Specifications | |
|---|---|
| Module Size | 320mm(W) * 160mm(H) |
| Pixel Pitch | 6mm / 8mm / 10mm |
| Pixel Density | 27777dot/㎡ (P6) / 15625dot/㎡ (P8) / 10000dot/㎡ (P10) |
| Pixel Configuration | 1R1G1B |
| LED Specification | SMD3535 |
| Max Power Consumption | 45W |
| Panel Weight | 0.55KG |
| Cabinet Specifications | |
|---|---|

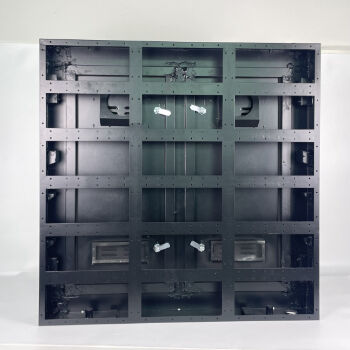

| Cabinet Size | 960 * 960mm |
| Quantity of Panel | 18pcs |
| Material | Waterproof Iron cabinet |
| Maintenance Method | Front/Back service |
| Best Viewing Angle | 170°/120° |
| Power Supply | AC110V/220V-5V60A |
| Technical Signal Index | |
|---|---|
| Brightness | 4500-5500 cd/㎡ |
| Contrast Ratio | 4000:1 |
| Refresh Frequency | 3840-7680HZ/S |
| Operating Temperature | -20℃ ~ 60℃ |
| IP Protective Index | IP65 |
| Life Span | 100,000 Hours |
Core Features and Advantages
- High brightness: Resistant to strong sunlight with clear visibility under direct light conditions
- Rugged construction: IP65 waterproof and dustproof rating for harsh outdoor environments
- Wide viewing angles: 170°/120° viewing angles ensure excellent visibility from all directions
- Modular design: Quick replacement of faulty modules reduces maintenance time and costs
- Vibrant display: 16-bit color depth delivers rich, dynamic visual content
- Remote management: Network-enabled cluster control for real-time content updates

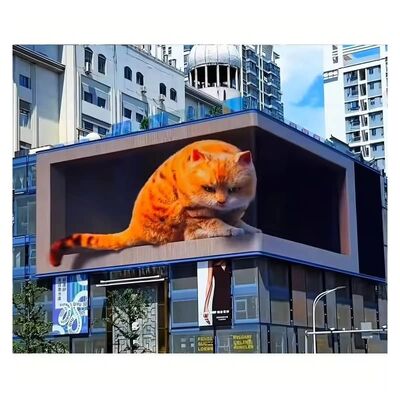

Application Scenarios
- Commercial street advertising and shopping mall displays
- Hotel/corporate entrance screens and image walls
- Event main screens for concerts and product launches
- Real estate sales office information displays
- Building exterior wall advertising

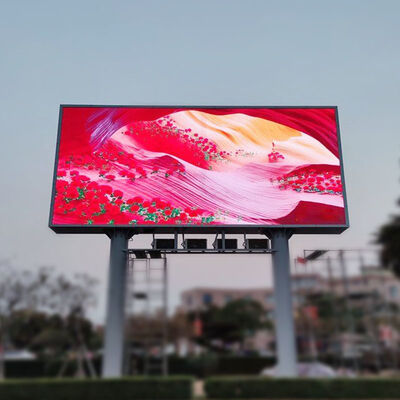

- Highway/main road billboards
- City square/stadium large screens
- Transportation hub information displays
Certifications
CE
FCC
ISO
Packaging
Installation Case
