詳細情報 |
|||
| 制御システム: | ノヴァスター | キャビネット材料: | ダイキャスティングアルミニウム |
|---|---|---|---|
| スキャンレート: | 1/28秒 | 寿命: | 100000時間 |
| パネル重量: | 7kg | モジュールサイズ: | 250*250mm |
| ハイライト: | P2.9 indoor LED display screen,high-refresh rental LED screens,seamless panel splicing LED display |
||
製品の説明

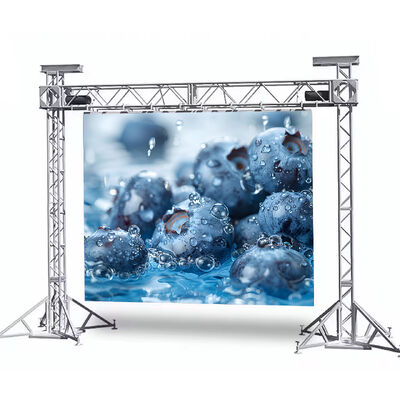

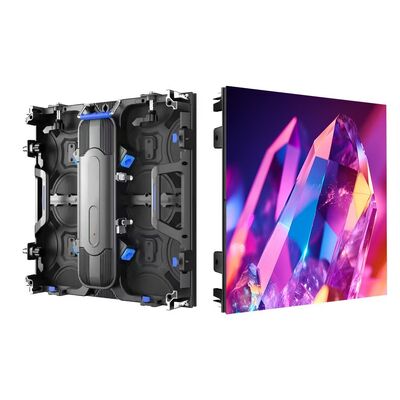

Indoor P2.9 Stage LED Display Screen
High-refresh 3840Hz rental LED screens with seamless panel splicing and rapid fast-lock design.
Technical Specifications
Module Specifications
| Module Size | 250mm(W)*250mm(H) |
| Pixel Pitch | 2.9 mm |
| Pixel Density | 112896 dot/㎡ |
| Pixel Configuration | 1R1G1B |
| LED Specification | SMD2121 |
| Pixel Resolution | 84dot*84dot |
| Max Power Consumption | 35W |
| Panel Weight | 0.5KG |
Cabinet Specifications
| Cabinet Size | 500*500mm, 500*1000mm |
| Cabinet Resolution | 168 dot*168 dot, 168 dot*336 dot |
| Quantity of Panel | 4pcs, 8pcs |
| Hub Connecting | HUB75-E |
| Material | Die-casting aluminum cabinet |
| Maintenance Method | Front/Back service |
| Best Viewing Angle | 170/120° |
| Power Supply | AC110V/220V-5V60A |
| Max Power Consumption | 800W/㎡ |
| Average power consumption | 400W/m² |
Technical Signal Index
| Driving IC | ICN1065 |
| Scan Rate | 1/28S |
| Refresh Frequency | 3840-7680HZ |
| Display Color | 4096*4096*4096(16bit) |
| Contrast Ratio | 4000:1 |
| Brightness | 800-1000 cd/㎡ |
| Life Span | 100000Hours |
| Best Viewing Distance | 3-30M |
| Operating Temperature | -10℃~45℃ |
| Operating Humidity | 10-90% |
| IP Protective Index | IP43 |
Core Features and Advantages
- High Brightness & Energy Saving: Utilizes high-efficiency LEDs and dynamic energy-saving technology, providing high brightness and low power consumption for clear images day and night.
- Superior Image Quality: High refresh rate and high grayscale levels ensure smooth, flicker-free images and eliminate scan lines during shooting.
- Convenient Maintenance: Supports front and rear maintenance; modular design allows for quick location and replacement of dead pixels/blocks.
- Quick Installation: Precise positioning and seamless interlocking between cabinets support various installation methods including hanging, stacking, and wall mounting.
- Versatile Adaptability: Standard 500*500mm/500*1000mm cabinets can be quickly assembled into various creative shapes to meet different stage design and creative needs.

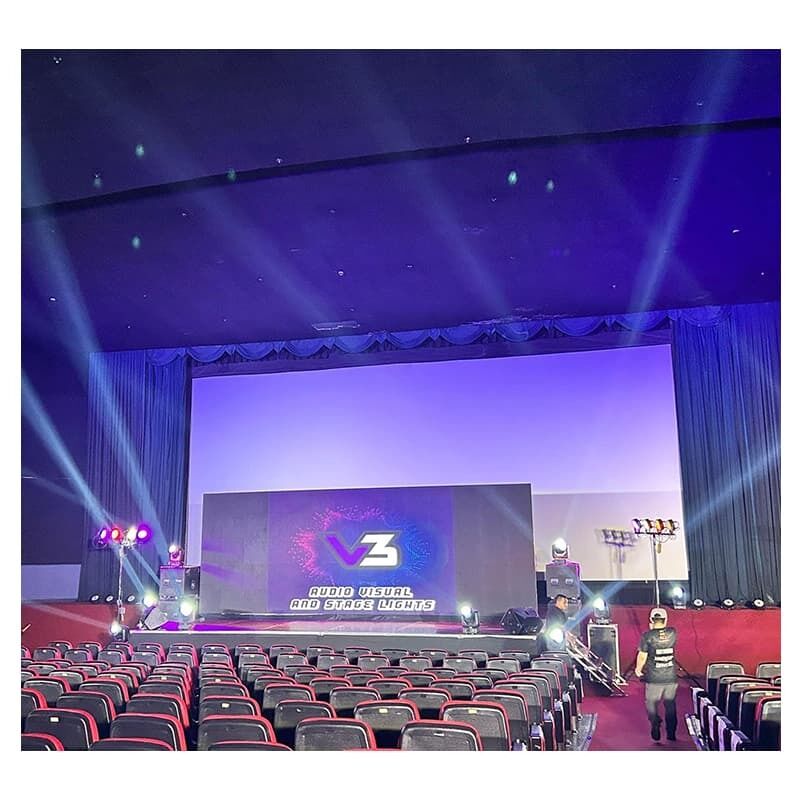

Application Scenarios
- Concerts and Large-Scale Galas: Serving as the main or side screen of the stage, providing high-definition live streaming and stunning visual effects.
- Corporate Brand Launches: Used for new product launches by high-end brands in technology, automobiles, and mobile phones.
- TV Studios: Serving as a large background screen for variety shows and news broadcasts.
- Large Conferences and Forums: Used to display themes, guest information, and data charts.
- Esports Competitions and Gaming Events: Serving as the main stage screen, broadcasting live battle footage.
- Luxury Commercial Showrooms: Used in car dealerships and mobile phone experience stores for product promotion.
- Rental Companies' Main Inventory: Ideal for various temporary events due to its clarity and flexibility.
Certifications
CCC, FCC, ISO
Packaging
This product comes standard with a dedicated flight case to ensure safe transportation, and also supports logo customization to enhance brand image.
Case Example
