詳細情報 |
|||
| ピクセルピッチ: | 3mm | ピクセル密度: | 111111ドット/平方メートル |
|---|---|---|---|
| ピクセル構成: | 1R1G1B | 最大消費電力: | 30W |
| パネル重量: | 0.55kg | キャビネットサイズ: | 576mm*576mm*90mm、768*768*90MM |
| キャビネットの解決: | 192ドット×192ドット、256ドット×256ドット | パネルの数量: | 9個、16個 |
| 最もよい視野角: | 140/120 | スクリーンの電源: | AC110V/220V - 5V60A |
| 最大電力容量: | 1100W/平方メートル | 頻度を更新します: | 1920-3840 HZ/S |
| 輝度: | 4500-5000 cd/m2 | 動作温度: | -10°C~45°C |
| IP 保護指数: | IP65 | ||
| ハイライト: | 1920Hz-3840Hz Refresh Rate LED Display,100000 Hours Life Span LED Screen,2 Years Warranty LED Video Wall |
||
製品の説明

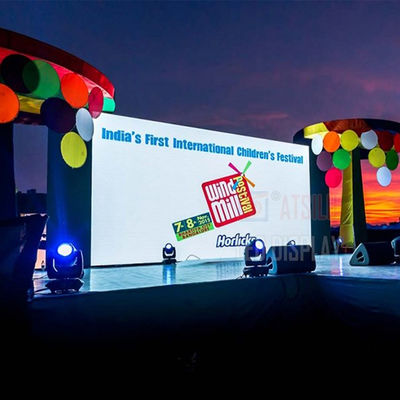

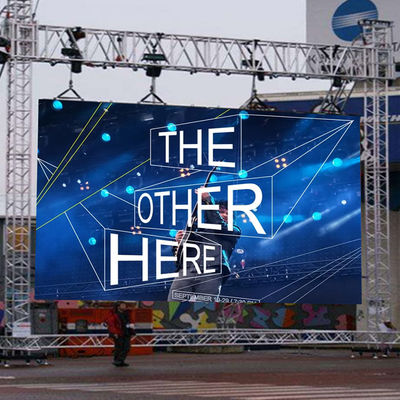

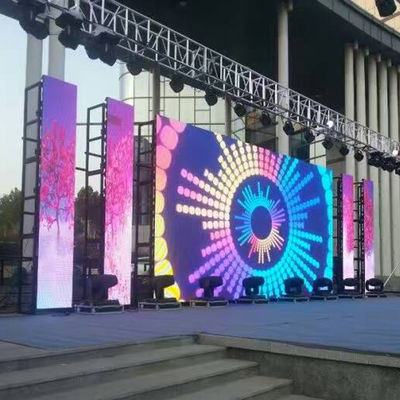

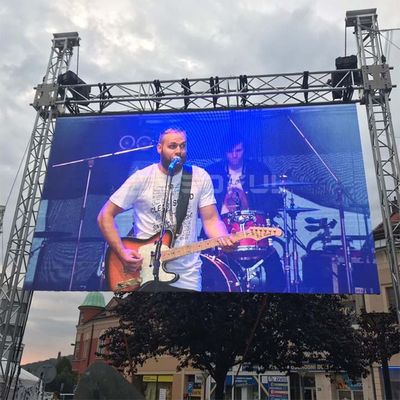

Outdoor P3 768*768mm Aluminum Cabinet Rental Display LED Display for Backstage
Product Specifications
Module Specifications
| Feature | Outdoor P3 | Outdoor P3.91 | Outdoor P4 |
|---|---|---|---|
| Panel Dimension | 192mm(W) * 192mm(H) | 250mm(W) * 250mm(H) | 256mm(W) * 128mm(H) |
| Pixel pitch | 3mm | 3.91mm | 4mm |
| Pixel Density | 111111 dot/m² | 65536 dot/m² | 62500 dot/m² |
| Pixel configuration | 1R1G1B | 1R1G1B | 1R1G1B |
| Specification | SMD1921 | SMD1921 | SMD1921 |
| Pixel resolution | 64 dot * 64 dot | 64 dot * 64 dot | 64 dot * 32 dot |
| Max power consumption | 30W | 40W | 32W |
| Panel weight | 0.55KG | 0.6KG | 0.3KG |
Cabinet Specifications
| Feature | Outdoor P3 | Outdoor P3.91 | Outdoor P4 |
|---|---|---|---|
| Cabinet size | 576mm*576mm*90mm, 768*768*90MM | 500*1000mm*90mm, 500*500*90mm | 1024mm*768mm*90mm |
| Cabinet Resolution | 192 dot * 192 dot, 256 dot * 256 dot | 128 dot * 256 dot, 128*128 dot | 256 dot * 192 dot |
| Quantity of panel | 9pcs, 16pcs | 8pcs, 4pcs | 24pcs |
| Hub connecting | HUB75-E | HUB75-E | HUB75-E |
| Cabinet Material | Diecasting aluminum cabinet | Diecasting aluminum cabinet | Diecasting aluminum cabinet |
| Maintenance Method | Front/Back service | Front/Back service | Front/Back service |
| Best viewing angle | 140/120 | 170/120 | 170/120 |
| Screen power supply | AC110V/220V - 5V60A | AC110V/220V - 5V60A | AC110V/220V - 5V60A |
| Max power capacity | 1100 W/m² | 1200 W/m² | 1550 W/m² |
| Average power | 550 W/m² | 600 W/m² | 780 W/m² |
Technical Specifications
| Feature | Outdoor P3 | Outdoor P3.91 | Outdoor P4 |
|---|---|---|---|
| Driving IC | ICN 2037 / 2153 | ICN 2037 / 2153 | ICN 2037 / 2153 |
| Scan Rate | 1/16S | 1/16S | 1/8S |
| Refresh frequency | 1920-3840 HZ/S | 1920-3840 HZ/S | 1920-3840 HZ/S |
| Display color | 4096*4096*4096 | 4096*4096*4096 | 4096*4096*4096 |
| Brightness | 4500-5000 cd/m² | 4000 cd/m² | 5500-6000 cd/m² |
| Life span | 100000 Hours | 100000 Hours | 100000 Hours |
| Control distance | < 100M | < 100M | < 100M |
| Best viewing distance | 3-30M | 3-30M | 4-40M |
| Operating temperature | -10°C~45°C | -20°C~60°C | -10°C~45°C |
| Operating Humidity | 10-90% | 10-90% | 10-90% |
| IP protective index | IP65 | IP65 | IP65 |
